import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import statsmodels.api as sm
from sklearn.metrics import mean_squared_error, r2_score, mean_absolute_error



df = pd.read_csv('hierarchical_regression.csv'
                ,dtype={'GPA': float
                       ,'Scholarship': bool
                       ,'Study_Hours': float
                       ,'Sports_hours': float
                       ,'Part_time_Work': float
                       ,'StudentID':int})

print(df)

"""
          GPA  Scholarship  Study_Hours  Sports_hours  Part_time_Work  StudentID
0    1.348928         True    10.348188      5.398119       14.944201          0
1    1.968662        False     8.803971      3.799566       15.340118          1
2    2.246881         True    10.367043      5.139604       19.937536          2
3    1.167275         True     2.049724      4.229373       21.009315          3
4    3.295929         True     9.121312      5.227035       14.271377          4
..        ...          ...          ...           ...             ...        ...
185  0.974230        False     4.256551      0.396158       13.299289        185
186  2.208293        False    14.652655      1.969618       10.523032        186
187  0.786660        False    10.040932      7.733749       13.232559        187
188  2.068987         True     6.073965      8.289935       13.540597        188
189  2.531604         True    11.848414      4.501928       11.335318        189
"""

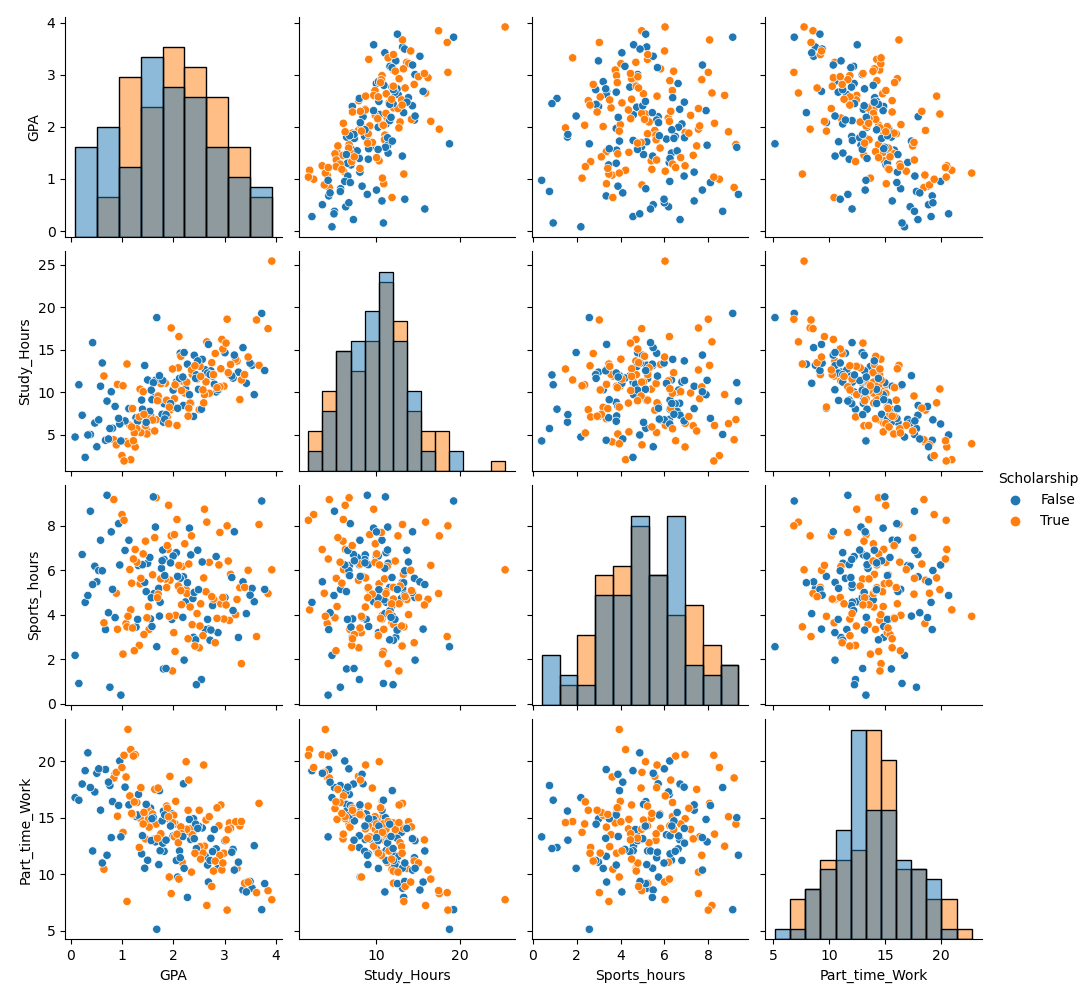

# ペアプロット
sns.pairplot(df
            ,vars=["GPA", "Study_Hours", "Sports_hours", "Part_time_Work"]
            ,hue="Scholarship"
            ,diag_kind="hist")
plt.suptitle("Pairplot with Scholarship", y=1.02)
plt.savefig('PairplotwithScholarship.png')
plt.close()

#joinplotで男女別に密度プロットを表示

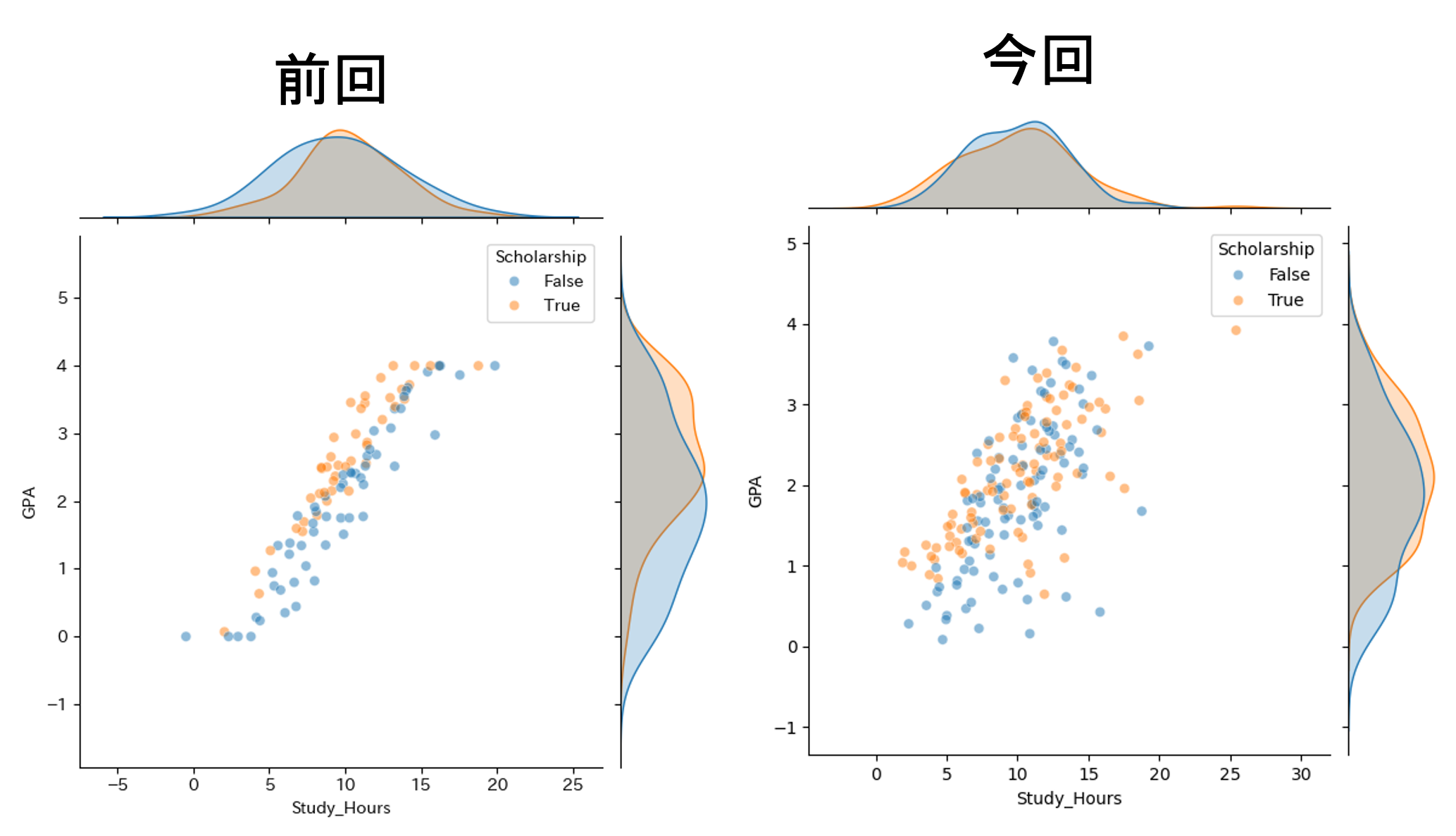

fig = sns.jointplot(df
               ,x ="Study_Hours"
               ,y ="GPA"
               ,hue='Scholarship'
               ,joint_kws = dict(alpha=0.5))
plt.savefig('kde.png')
plt.close()

# 数量化
df = pd.get_dummies(df, columns=['Scholarship'], dtype='int')

#標準化
from sklearn.preprocessing import StandardScaler
scaler = StandardScaler()
df[['Scholarship_True'
   ,'Study_Hours'
   ,'Part_time_Work'
   ,'Sports_hours']] = scaler.fit_transform(df[['Scholarship_True'
                                               ,'Study_Hours'
                                               ,'Part_time_Work'
                                               ,'Sports_hours']])

#線形回帰
# 説明変数(X)と目的変数(y)に分割
X = df[['Scholarship_True', 'Study_Hours']]
y = df['GPA']


# 切片(定数項)を追加
X = sm.add_constant(X)
lm = sm.OLS(y, X).fit()
print("\n[通常の線形回帰の結果]\n")
print(lm.summary())
lm_preds = lm.predict(X)

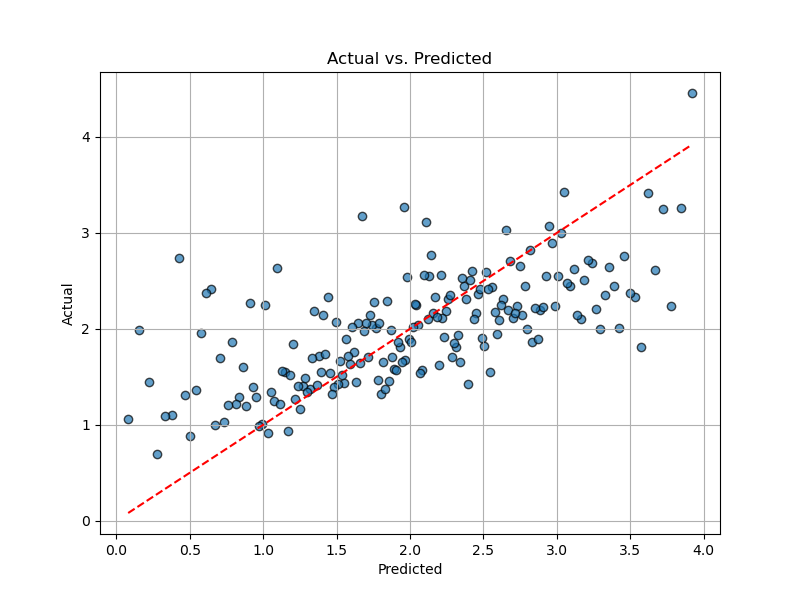

plt.figure(figsize=(8, 6))
plt.scatter(df['GPA'], lm_preds, alpha=0.7, edgecolors="k")
plt.xlabel("Predicted")
plt.ylabel("Actual")
plt.title("Actual vs. Predicted")
plt.plot([df['GPA'].min(), df['GPA'].max()], [df['GPA'].min(), df['GPA'].max()], color="red", linestyle="--")  # 完全一致のライン
plt.grid()
plt.savefig('lm.png')
plt.close()

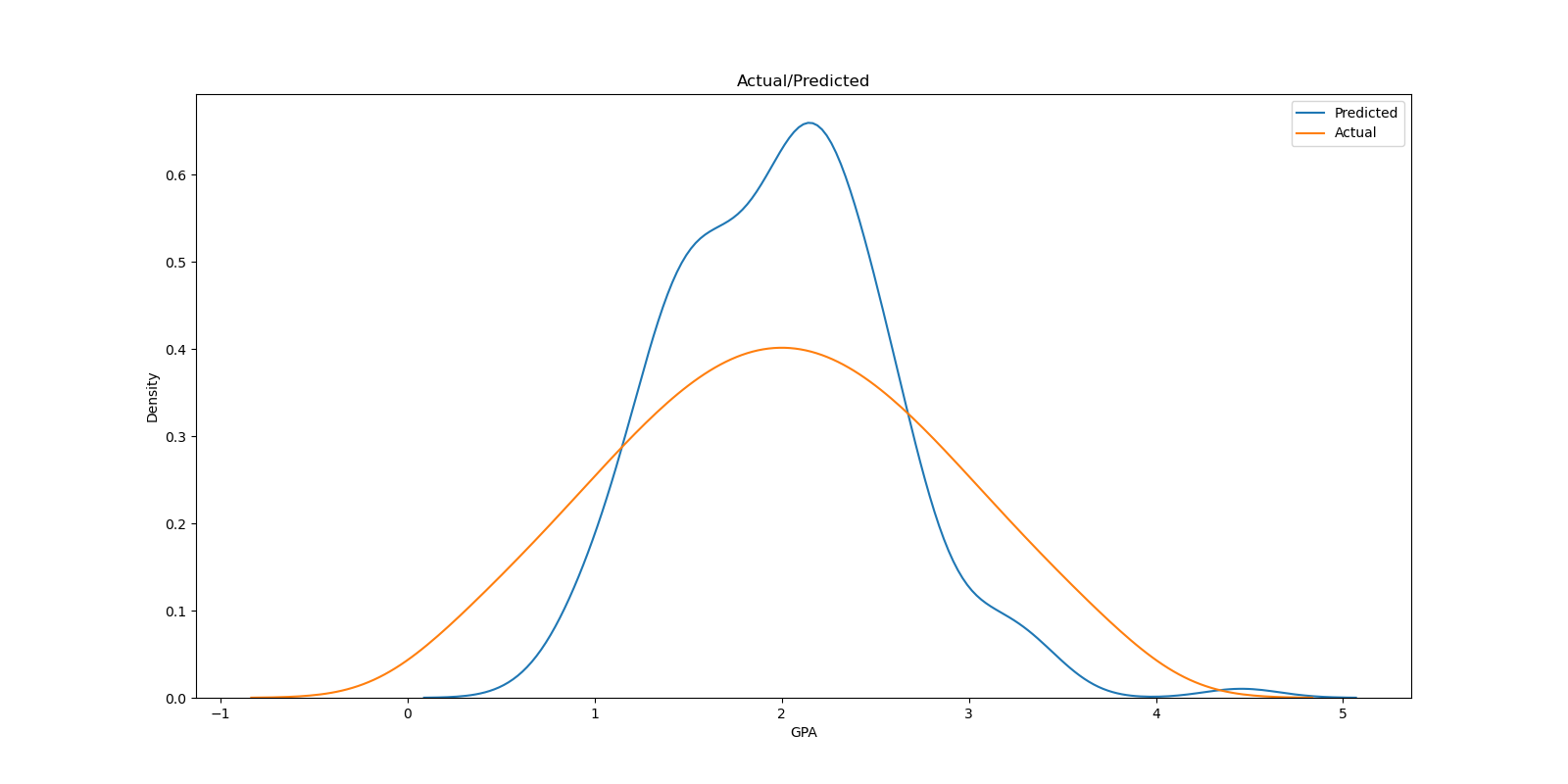

plt.figure(figsize=(16,8))
sns.kdeplot(lm_preds, label = 'Predicted')
sns.kdeplot(df['GPA'], label = 'Actual')
plt.title('Actual/Predicted')
plt.xlabel('GPA')
plt.ylabel('Density')
plt.legend()
plt.savefig('lm_kde.png')
plt.close()

"""
                            OLS Regression Results
==============================================================================
Dep. Variable:                    GPA   R-squared:                       0.444
Model:                            OLS   Adj. R-squared:                  0.438
Method:                 Least Squares   F-statistic:                     74.76
Date:                Tue, 04 Nov 2025   Prob (F-statistic):           1.38e-24
Time:                        16:50:17   Log-Likelihood:                -187.55
No. Observations:                 190   AIC:                             381.1
Df Residuals:                     187   BIC:                             390.8
Df Model:                           2
Covariance Type:            nonrobust
====================================================================================
                       coef    std err          t      P>|t|      [0.025      0.975]
------------------------------------------------------------------------------------
const                2.0000      0.047     42.122      0.000       1.906       2.094
Scholarship_True     0.1385      0.047      2.917      0.004       0.045       0.232
Study_Hours          0.5620      0.047     11.835      0.000       0.468       0.656
==============================================================================
Omnibus:                       11.718   Durbin-Watson:                   1.974
Prob(Omnibus):                  0.003   Jarque-Bera (JB):               14.133
Skew:                          -0.457   Prob(JB):                     0.000853
Kurtosis:                       3.975   Cond. No.                         1.01
==============================================================================
"""

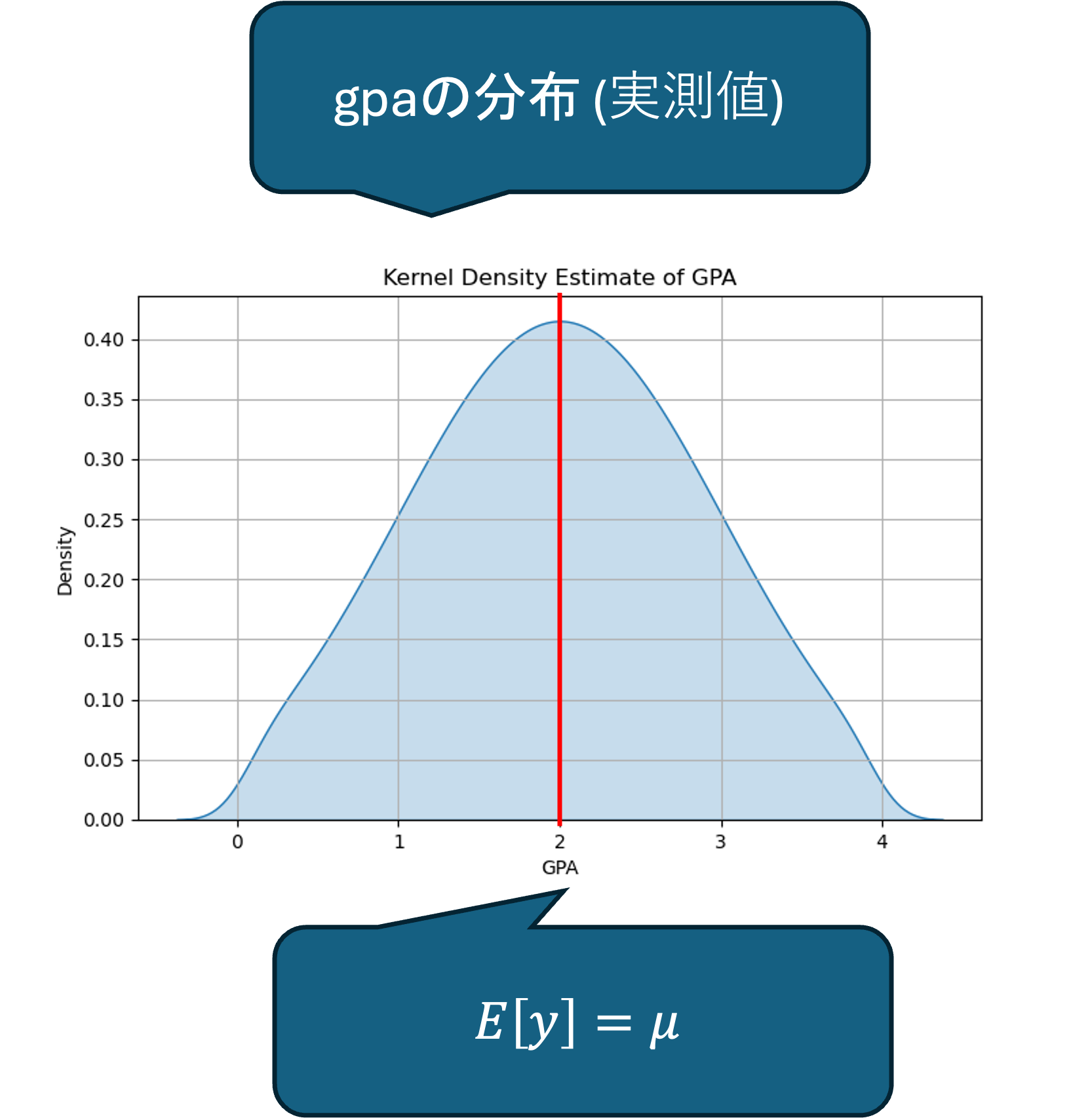

plt.figure(figsize=(8, 5))
sns.kdeplot(df["GPA"], fill=True, bw_adjust=0.5)
plt.title("Kernel Density Estimate of GPA")
plt.xlabel("GPA")
plt.ylabel("Density")
plt.grid(True)
plt.savefig('kde-gpa.png')
plt.close()

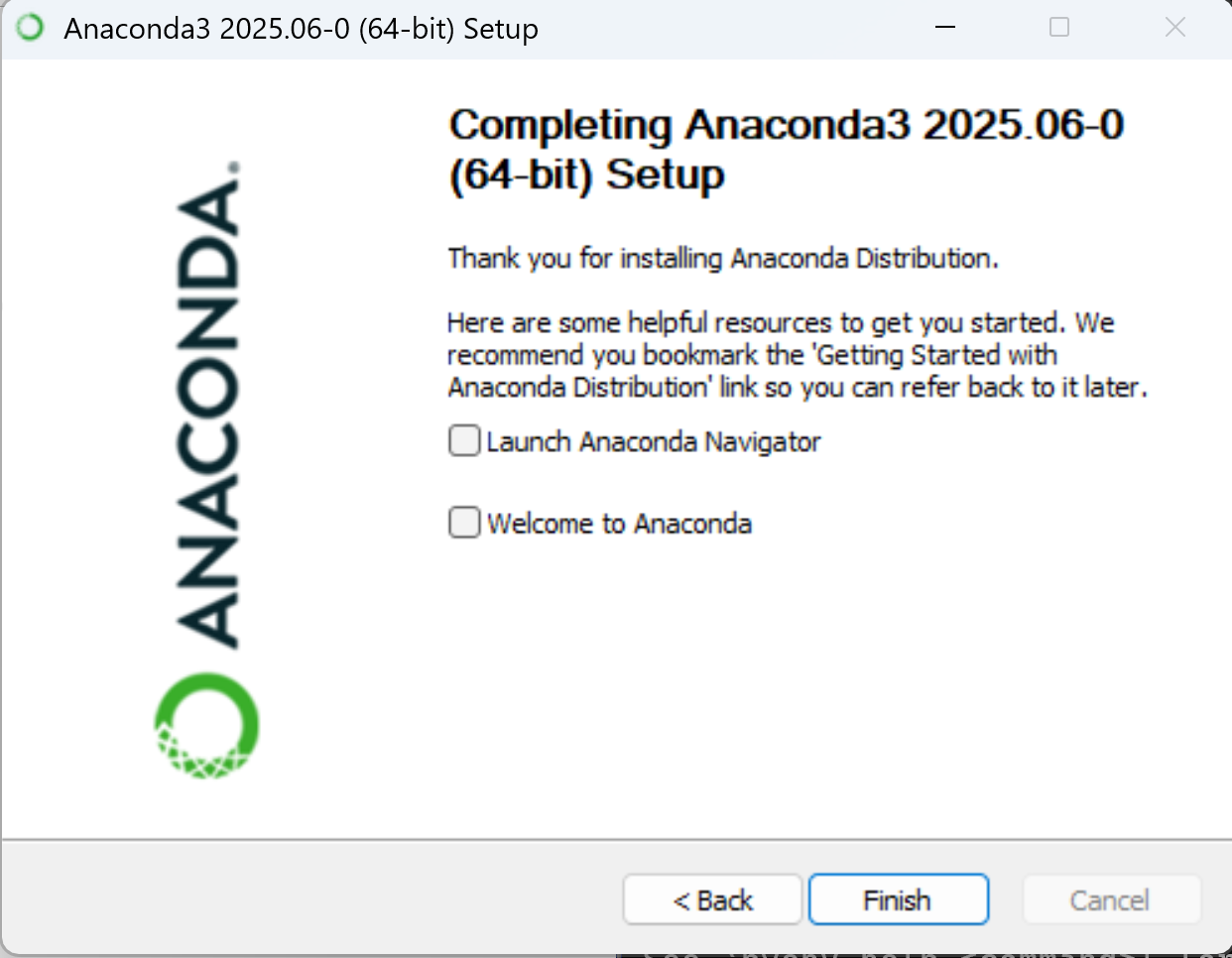

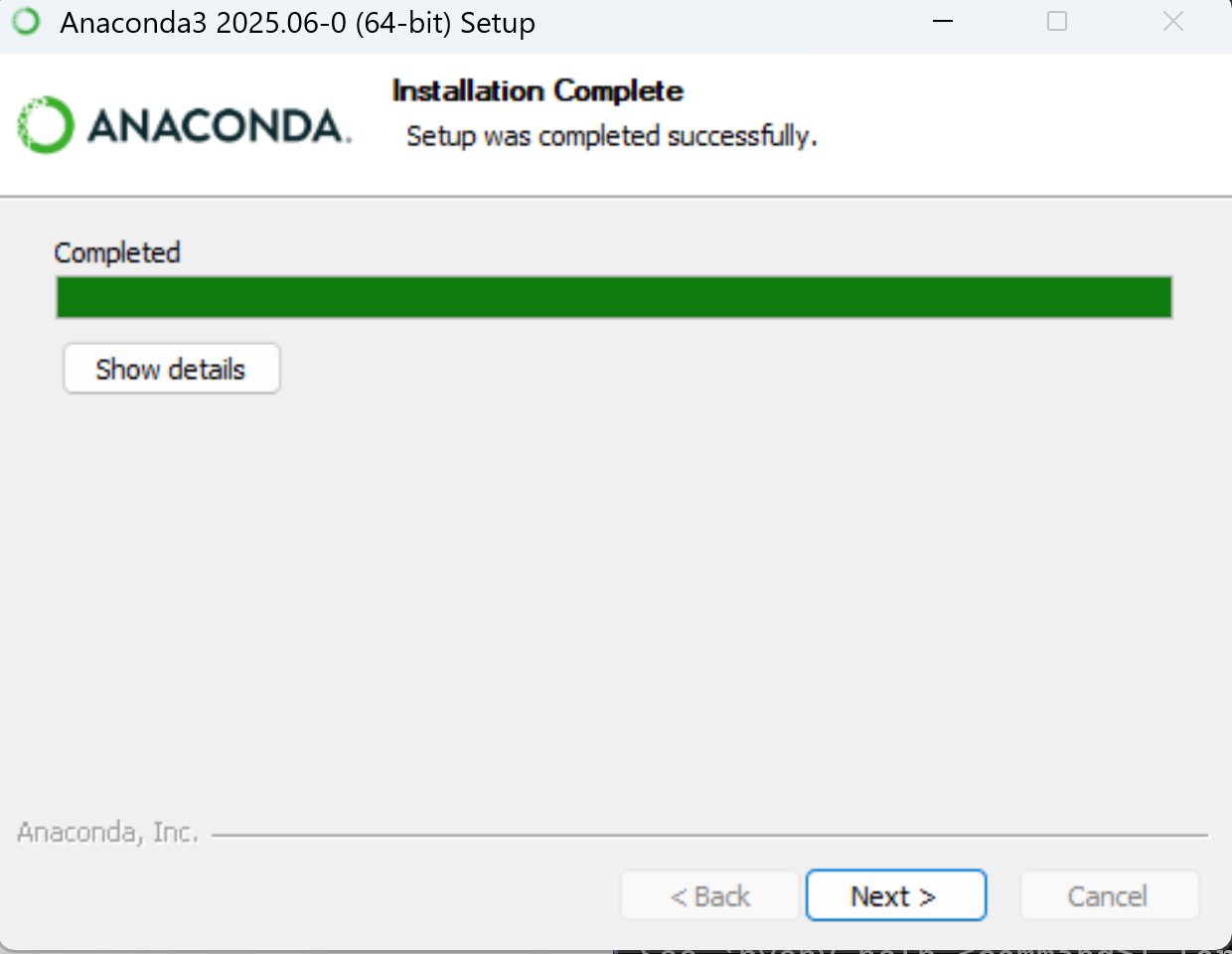

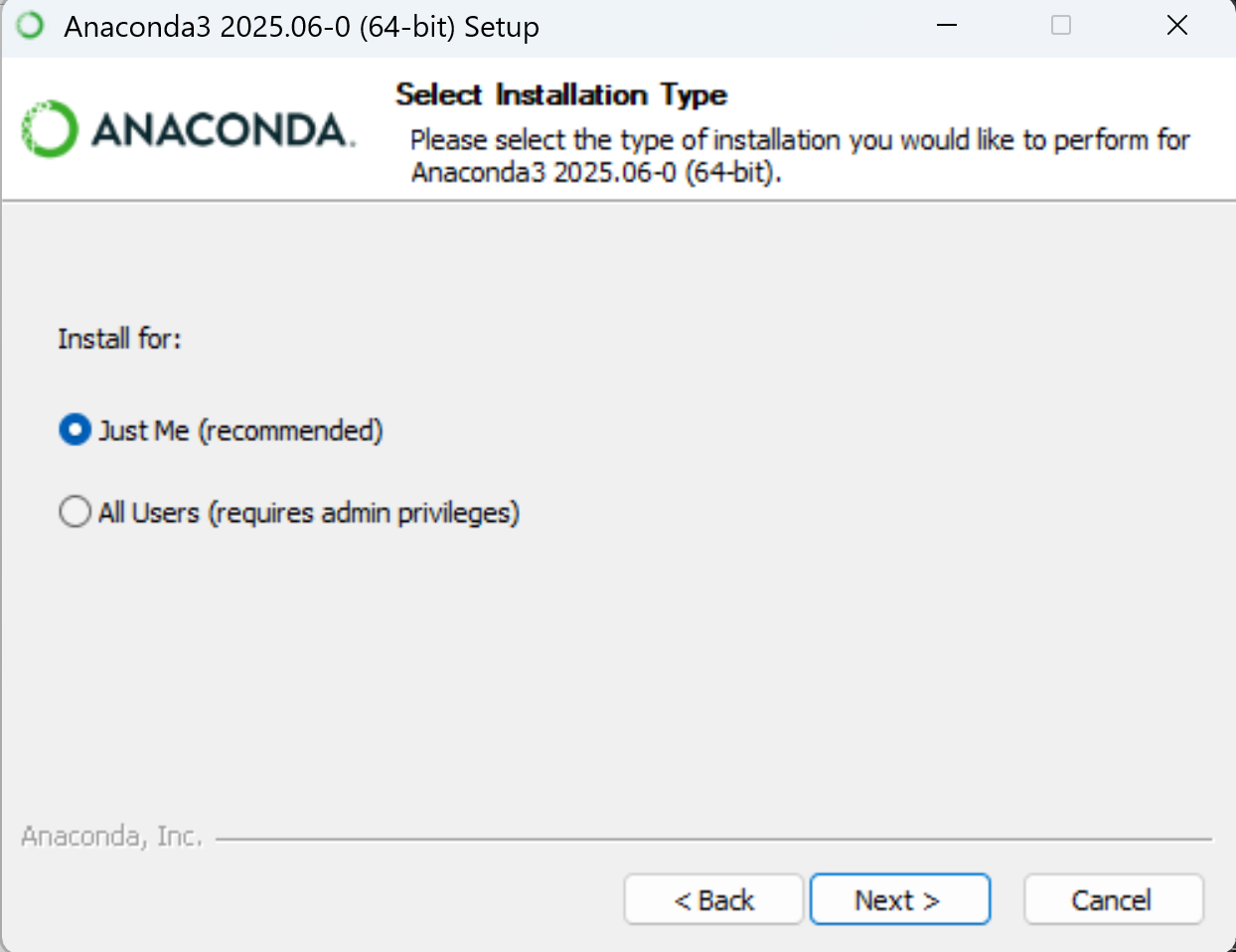

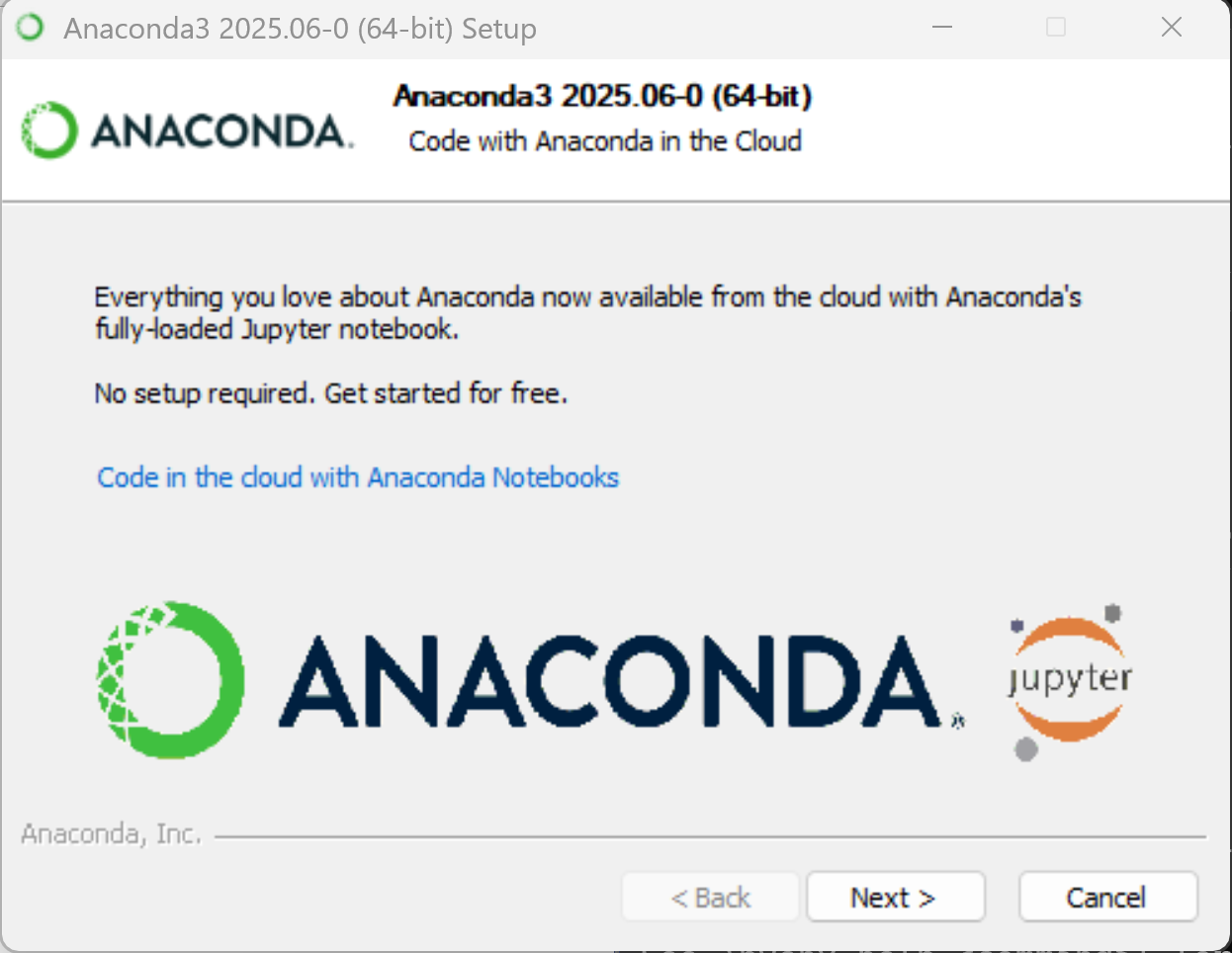

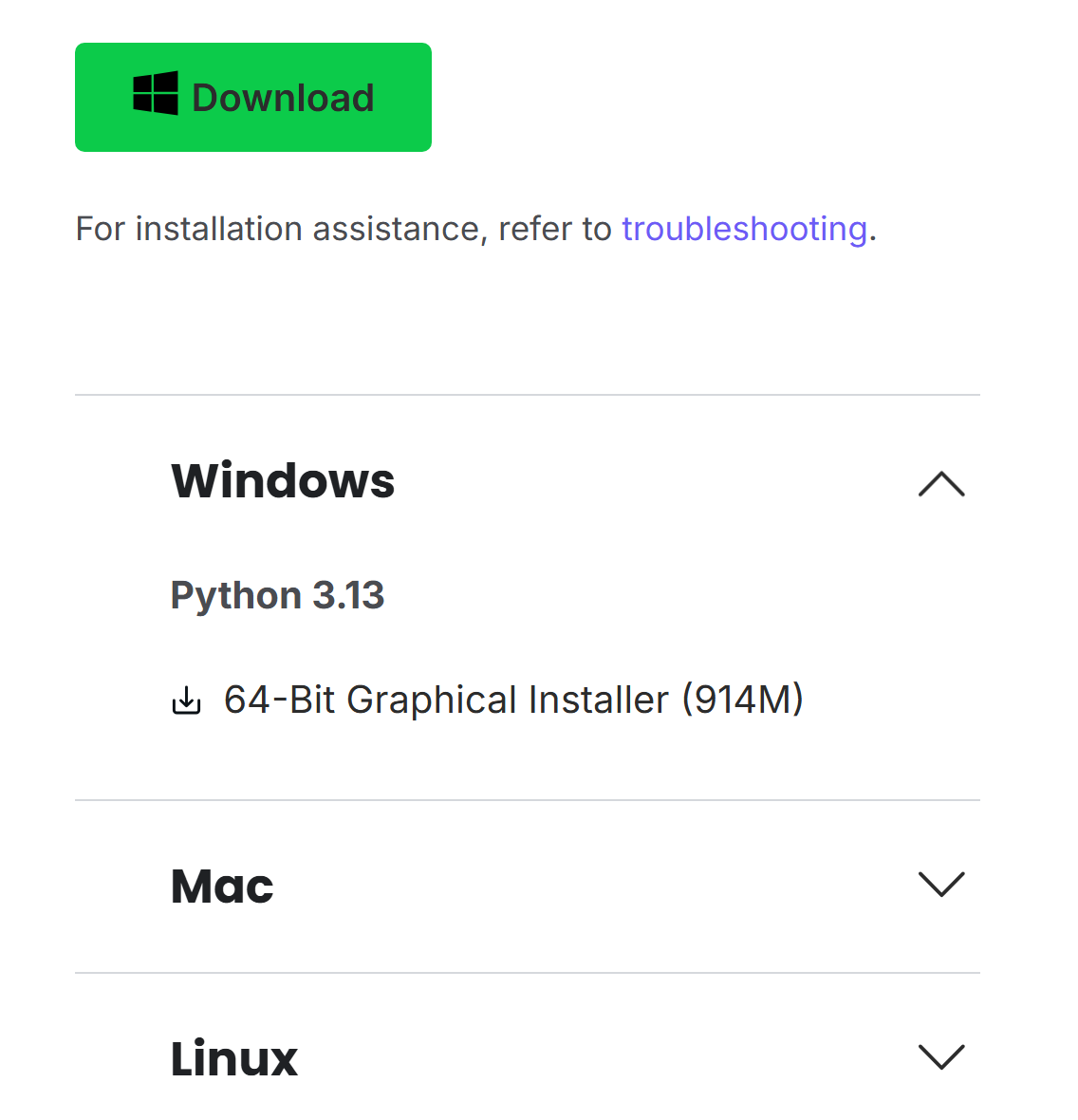

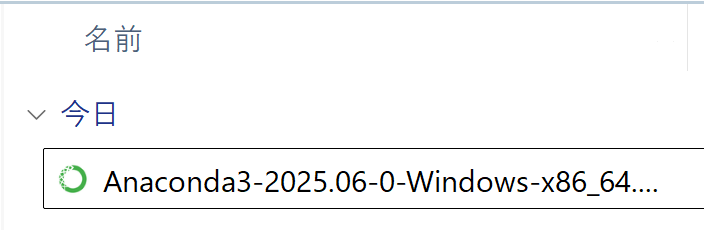

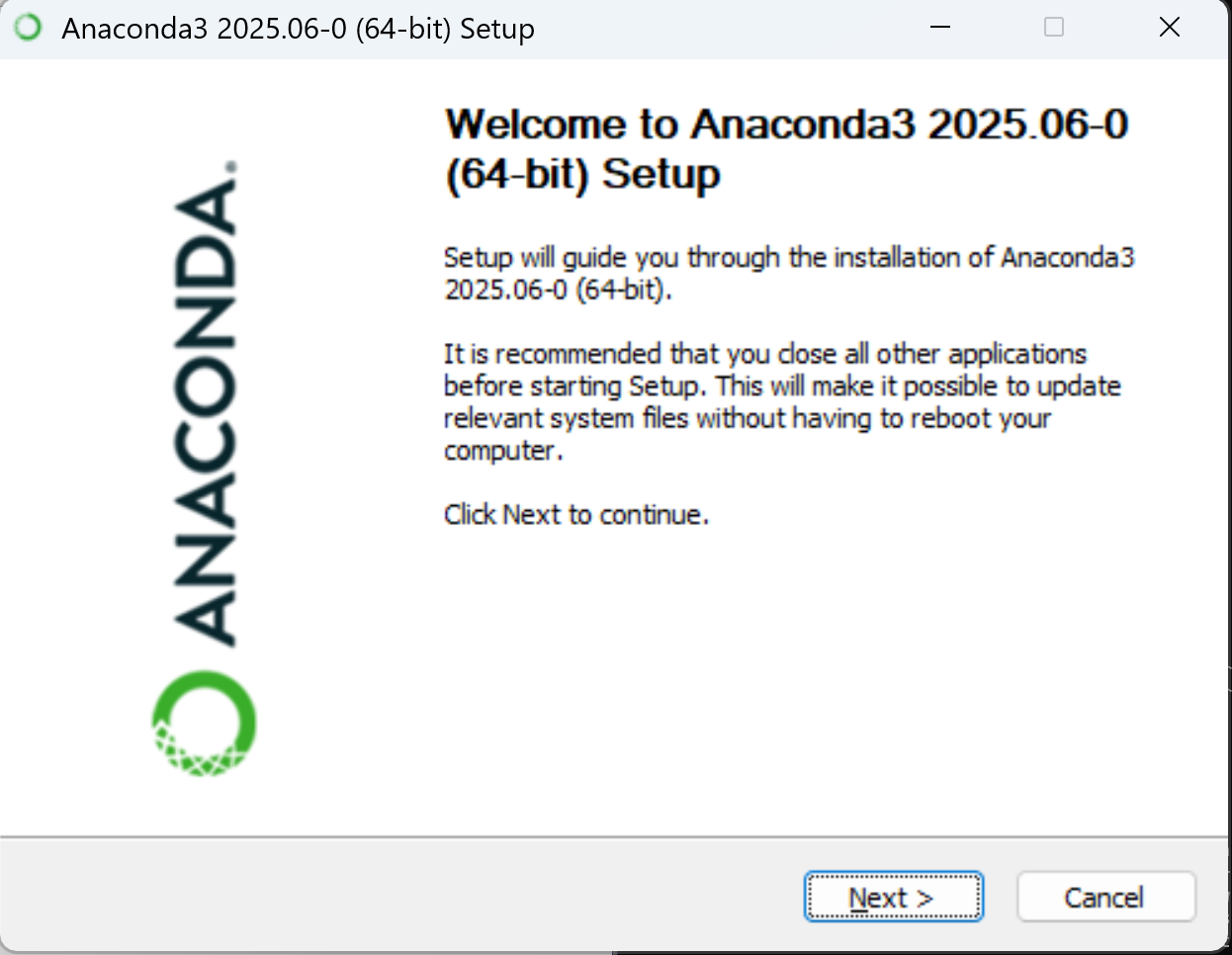

pyenv local anaconda
pyenv rehash

conda update -n base -c defaults conda

Proceed ([y]/n)? y

conda create -c conda-forge -n pymc_env "pymc>=5"

conda init powershell

conda activate pymc_env

Get-Command python

CommandType     Name                                               Version    Source
-----------     ----                                               -------    ------
Application     python.exe                                         3.11.14... C:\Users\akagi\.pyenv\pyenv-win\versions\anaconda\envs\pymc_env\python.exe

conda install seaborn scikit-learn statsmodels

Preparing transaction: done
Verifying transaction: done
Executing transaction: done

import pymc as pm
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import arviz as az
import graphviz
from pymc import model_to_graphviz
import statsmodels.api as sm
from sklearn.metrics import mean_squared_error, r2_score, mean_absolute_error
from scipy.stats import norm, rankdata


save_dir = '../../images/slds/ch12/'

if __name__ == "__main__":

    # ---------------------------
    # 1. データ読み込み
    # ---------------------------
    df = pd.read_csv('hierarchical_regression.csv'
                ,dtype={'GPA': float
                       ,'Scholarship': bool
                       ,'Study_Hours': float
                       ,'Sports_hours': float
                       ,'Part_time_Work': float
                       ,'StudentID':int})

    # 数量化
    df = pd.get_dummies(df, columns=['Scholarship'], dtype='int')

    #標準化
    from sklearn.preprocessing import StandardScaler
    scaler = StandardScaler()
    df[['Scholarship_True'
       ,'Study_Hours'
       ,'Part_time_Work'
       ,'Sports_hours']] = scaler.fit_transform(df[['Scholarship_True'
                                                   ,'Study_Hours'
                                                   ,'Part_time_Work'
                                                   ,'Sports_hours']])

    # ---------------------------
    # ２. 線形回帰
    # ---------------------------

    # 説明変数(X)と目的変数(y)に分割
    X = df[['Scholarship_True', 'Study_Hours']]
    y = df['GPA']


    # 切片(定数項)を追加
    X = sm.add_constant(X)
    lm = sm.OLS(y, X).fit()
    print("\n[通常の線形回帰の結果]\n")
    print(lm.summary())
    lm_preds = lm.predict(X)

    plt.figure(figsize=(8, 6))
    plt.scatter(df['GPA'], lm_preds, alpha=0.7, edgecolors="k")
    plt.xlabel("Predicted")
    plt.ylabel("Actual")
    plt.title("Actual vs. Predicted")
    plt.plot([df['GPA'].min(), df['GPA'].max()], [df['GPA'].min(), df['GPA'].max()], color="red", linestyle="--")  # 完全一致のライン
    plt.grid()
    plt.savefig(save_dir + 'lm.png')
    plt.close()

    plt.figure(figsize=(16,8))
    sns.kdeplot(lm_preds, label = 'Predicted')
    sns.kdeplot(df['GPA'], label = 'Actual')
    plt.title('Actual/Predicted')
    plt.xlabel('GPA')
    plt.ylabel('Density')
    plt.legend()
    plt.savefig(save_dir + 'lm_kde.png')
    plt.close()

    # ---------------------------
    # ３. 一般化線形モデル
    # ---------------------------

    coords = {
        "student": df["StudentID"].values,
        "obs_id": np.arange(len(df))
    }

    with pm.Model(coords=coords) as model:
        st = pm.Data("st", df["Study_Hours"])
        #ptw = pm.Data("ptw", df["Part_time_Work"])
        ss = pm.Data("ss", df["Scholarship_True"])
        student_idx = pm.Data("student_idx", df["StudentID"])

        #ランダム切片
        z_alpha = pm.Normal("z_alpha", 0, 1, dims="student")
        mu_alpha = pm.Normal("mu_alpha", 0, 1)
        sigma_alpha = pm.HalfNormal("sigma_alpha", 1)
        alpha = pm.Deterministic("alpha", mu_alpha + sigma_alpha * z_alpha, dims="student")


        # 勉強時間の効果
        beta_st = pm.Normal("beta_st",0,1)

        # 奨学金の効果
        beta_ss = pm.Normal("beta_ss",0,1)

        mu = alpha[student_idx] + beta_st * st +  beta_ss * ss

        #sigma = pm.HalfNormal("sigma", 1)
        sigma = 0.3
        gpa_obs = pm.Normal("GPA",
                            mu=mu,
                            sigma=sigma,
                            observed=df["GPA"],
                            dims="obs_id"
                        )
        trace = pm.sample(draws =2000, tune=2000, chains=4, target_accept=0.95, return_inferencedata=True)
        posterior_predictive = pm.sample_posterior_predictive(trace)

    # ---------------------------
    # 4. モデル診断と可視化
    # ---------------------------

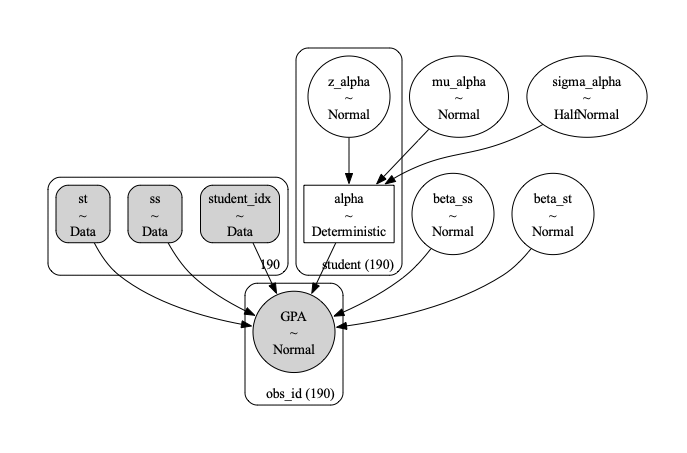

    graph = model_to_graphviz(model)
    graph.render(filename= save_dir + "hierarchical_bayes_model", format="pdf")

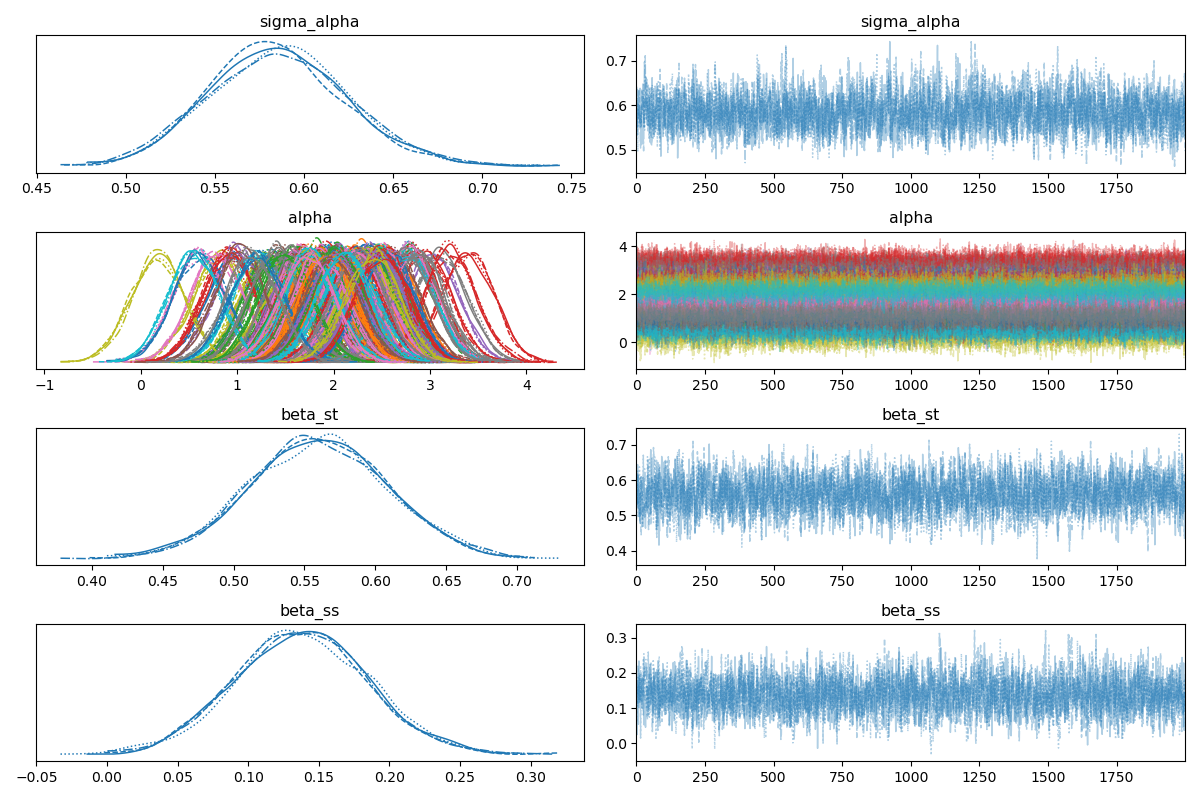

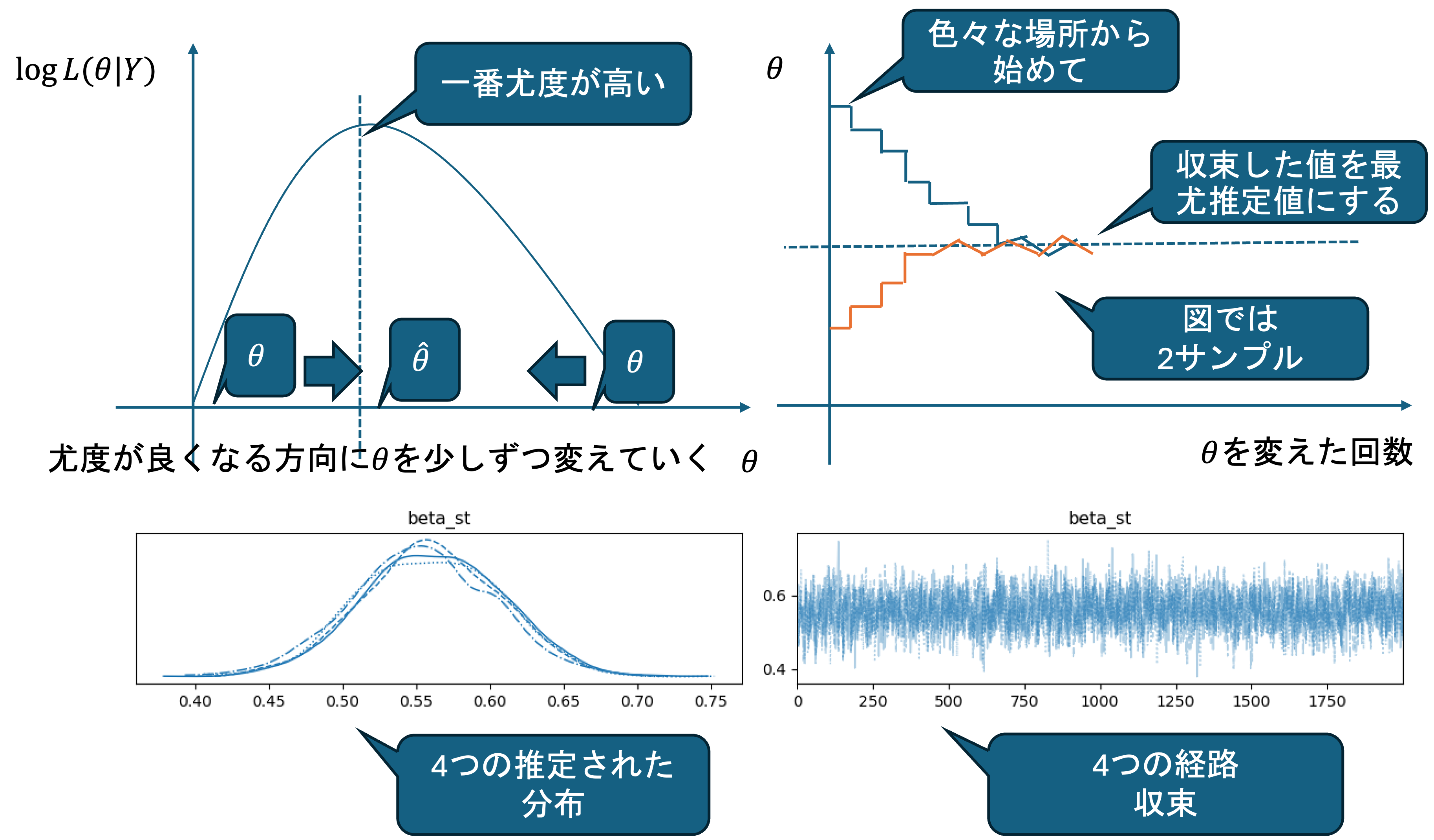

    az.plot_trace(trace
                 ,var_names=["sigma_alpha"
                            ,"alpha"
                            ,"beta_st"
                            ,"beta_ss"])
    plt.tight_layout()
    plt.savefig(save_dir + 'trace.png')
    plt.close()

    print(az.summary(trace
                    ,var_names=["sigma_alpha"
                               ,"alpha"
                               ,"beta_st"
                               ,"beta_ss"]))
    summary_df = az.summary(trace
                           ,var_names=["sigma_alpha"
                                      ,"alpha"
                                      ,"beta_st"
                                      ,"beta_ss"])
    summary_df.to_csv("bayesian_summary.csv"
                     ,encoding="utf-8-sig")


    # ---------------------------
    # 6. 階層ベイズモデルによる予測精度評価
    # ---------------------------
    idata = trace.copy()
    idata.extend(posterior_predictive)

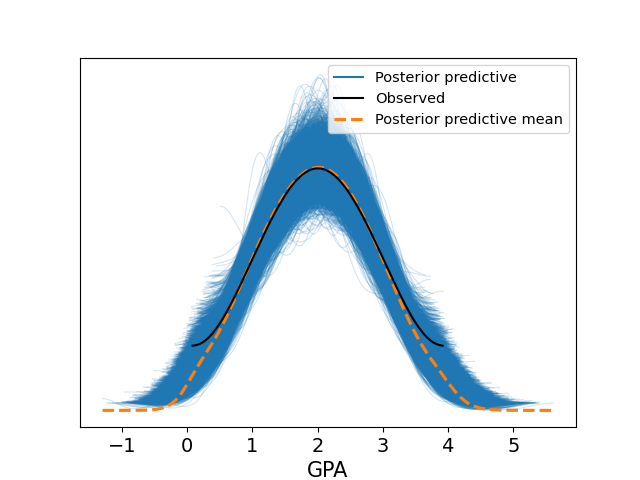

    az.plot_ppc(idata, data_pairs={"GPA": "GPA"})
    plt.savefig(save_dir + 'ppc.png')
    plt.close()


    #------------------------------------------------------------------
    # 予測値の可視化
    #------------------------------------------------------------------

    posterior_mean = idata.posterior_predictive["GPA"].mean(dim=("chain", "draw")).values
    bayes_rmse = mean_squared_error(df["GPA"], posterior_mean)
    print(f"[階層ベイズモデルのRMSE] {bayes_rmse:.4f}\n")
    # 事後予測の平均（予測値）を取り出す
    posterior_mean = idata.posterior_predictive["GPA"].mean(dim=("chain", "draw")).values

    # プロット

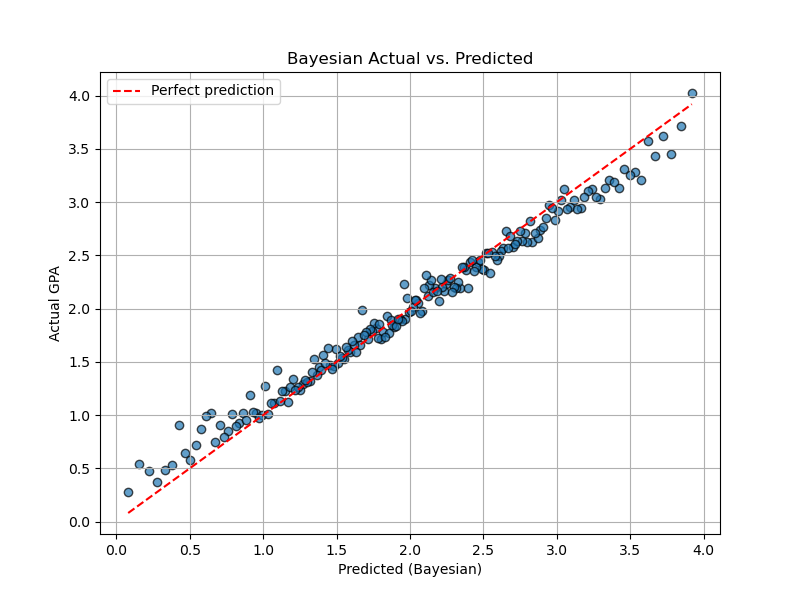

    plt.figure(figsize=(8, 6))
    plt.scatter(df['GPA'], posterior_mean, alpha=0.7, edgecolors="k")
    plt.xlabel("Predicted (Bayesian)")
    plt.ylabel("Actual GPA")
    plt.title("Bayesian Actual vs. Predicted")
    plt.plot([df['GPA'].min(), df['GPA'].max()],
             [df['GPA'].min(), df['GPA'].max()],
             color="red", linestyle="--", label="Perfect prediction")
    plt.grid()
    plt.legend()
    plt.savefig(save_dir + 'bayes.png')
    plt.close()

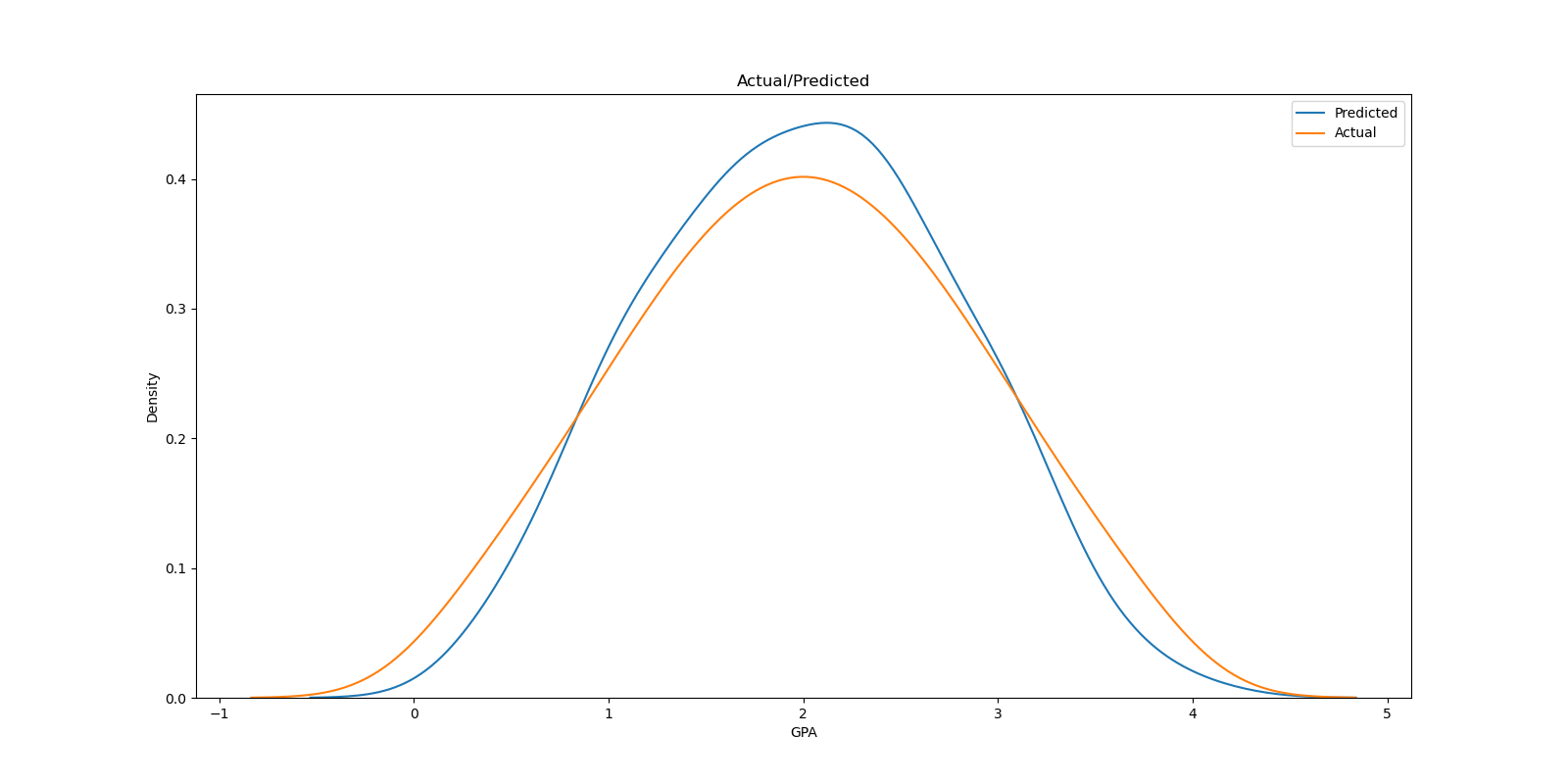

    plt.figure(figsize=(16,8))
    sns.kdeplot(posterior_mean, label = 'Predicted')
    sns.kdeplot(df['GPA'], label = 'Actual')
    plt.title('Actual/Predicted')
    plt.xlabel('GPA')
    plt.ylabel('Density')
    plt.legend()
    plt.savefig(save_dir + 'bayes_kde.png')
    plt.close()

    #------------------------------------------------------------------
    # 予測範囲の可視化
    #------------------------------------------------------------------

    # x軸用の study_hours の範囲（100点）
    study_grid = np.linspace(df["Study_Hours"].min(), df["Study_Hours"].max(), 100)

    # 奨学金なしの予測
    predict_df_0 = pd.DataFrame({
        "Study_Hours": study_grid,
        "Scholarship_True": 0,
        "StudentID": 0
    })

    # 奨学金ありの予測
    predict_df_1 = pd.DataFrame({
        "Study_Hours": study_grid,
        "Scholarship_True": 1,
        "StudentID": 0
    })

    # より簡単な方法：事後分布から直接予測
    # 事後分布のサンプルを取得（新しいAPIを使用）
    posterior_samples = az.extract(trace)

    # 予測計算
    n_samples = len(posterior_samples.draw)
    n_grid = len(study_grid)

    # 予測値を格納する配列（奨学金なし・あり）
    predictions_0 = np.zeros((n_samples, n_grid))
    predictions_1 = np.zeros((n_samples, n_grid))

    # パラメータを一度に取得
    mu_alpha_vals = posterior_samples.mu_alpha.values
    sigma_alpha_vals = posterior_samples.sigma_alpha.values
    z_alpha_vals = posterior_samples.z_alpha.values  # 全学生のz_alpha
    beta_st_vals = posterior_samples.beta_st.values
    beta_ss_vals = posterior_samples.beta_ss.values

    for i in range(n_samples):
        # 各サンプルでのパラメータ（学生0の切片を計算）
        alpha_0 = mu_alpha_vals[i] + sigma_alpha_vals[i] * z_alpha_vals[0, i]  # 学生0の切片

        # 奨学金なしの予測値の計算
        mu_pred_0 = alpha_0 + beta_st_vals[i] * study_grid + beta_ss_vals[i] * predict_df_0["Scholarship_True"]
        predictions_0[i, :] = np.random.normal(mu_pred_0, 0.3)

        # 奨学金ありの予測値の計算
        mu_pred_1 = alpha_0 + beta_st_vals[i] * study_grid + beta_ss_vals[i] * predict_df_1["Scholarship_True"]
        predictions_1[i, :] = np.random.normal(mu_pred_1, 0.3)

    # 平均と予測区間（94%）
    mean_pred_0 = np.mean(predictions_0, axis=0)
    lower_pred_0 = np.percentile(predictions_0, 3, axis=0)
    upper_pred_0 = np.percentile(predictions_0, 97, axis=0)

    mean_pred_1 = np.mean(predictions_1, axis=0)
    lower_pred_1 = np.percentile(predictions_1, 3, axis=0)
    upper_pred_1 = np.percentile(predictions_1, 97, axis=0)

    # 実データも合わせて表示（奨学金の有無で色分け）
    plt.figure(figsize=(12, 8))

    # 奨学金なしの予測線
    plt.plot(study_grid, mean_pred_0, color="blue", label="Bayesian prediction (Scholarship=0)")
    plt.fill_between(study_grid, lower_pred_0, upper_pred_0, color="blue", alpha=0.2, label="94% CI (Scholarship=0)")

    # 奨学金ありの予測線
    plt.plot(study_grid, mean_pred_1, color="green", label="Bayesian prediction (Scholarship=1)")
    plt.fill_between(study_grid, lower_pred_1, upper_pred_1, color="green", alpha=0.2, label="94% CI (Scholarship=1)")

    # 奨学金の有無で実測値を色分け
    scholarship_0 = df[df["Scholarship_True"] == 0]
    scholarship_1 = df[df["Scholarship_True"] == 1]

    plt.scatter(scholarship_0["Study_Hours"], scholarship_0["GPA"],
                color="red", alpha=0.6, label="Observed GPA (Scholarship=0)", s=30)
    plt.scatter(scholarship_1["Study_Hours"], scholarship_1["GPA"],
                color="orange", alpha=0.6, label="Observed GPA (Scholarship=1)", s=30)

    plt.xlabel("Study Hours")
    plt.ylabel("GPA")
    plt.title("Bayesian Regression Lines with 94% Prediction Intervals")
    plt.legend()
    plt.grid(True)
    plt.tight_layout()
    plt.savefig(save_dir + "bayes_prediction_band.png")
    plt.close()


    # ---------------------------
    # 7. 包括的な結果表示
    # ---------------------------

    # パラメータの解釈可能性を向上
    print("\n=== モデル結果の解釈 ===")
    print(f"勉強時間の効果 (beta_st): {np.mean(beta_st_vals):.3f} ± {np.std(beta_st_vals):.3f}")
    print(f"奨学金の効果 (beta_ss): {np.mean(beta_ss_vals):.3f} ± {np.std(beta_ss_vals):.3f}")
    print(f"学生間のばらつき (sigma_alpha): {np.mean(sigma_alpha_vals):.3f} ± {np.std(sigma_alpha_vals):.3f}")
    #
    ## 効果量の計算
    effect_size_study = np.mean(beta_st_vals) / np.mean(sigma_alpha_vals)
    effect_size_scholarship = np.mean(beta_ss_vals) / np.mean(sigma_alpha_vals)
    print(f"勉強時間の標準化効果量: {effect_size_study:.3f}")
    print(f"奨学金の標準化効果量: {effect_size_scholarship:.3f}")
    #
    ## 予測精度の詳細評価
    r2 = r2_score(df["GPA"], posterior_mean)
    mae = mean_absolute_error(df["GPA"], posterior_mean)
    print(f"\n=== 予測精度 ===")
    print(f"R²: {r2:.4f}")
    print(f"MAE: {mae:.4f}")
    print(f"RMSE: {bayes_rmse:.4f}")

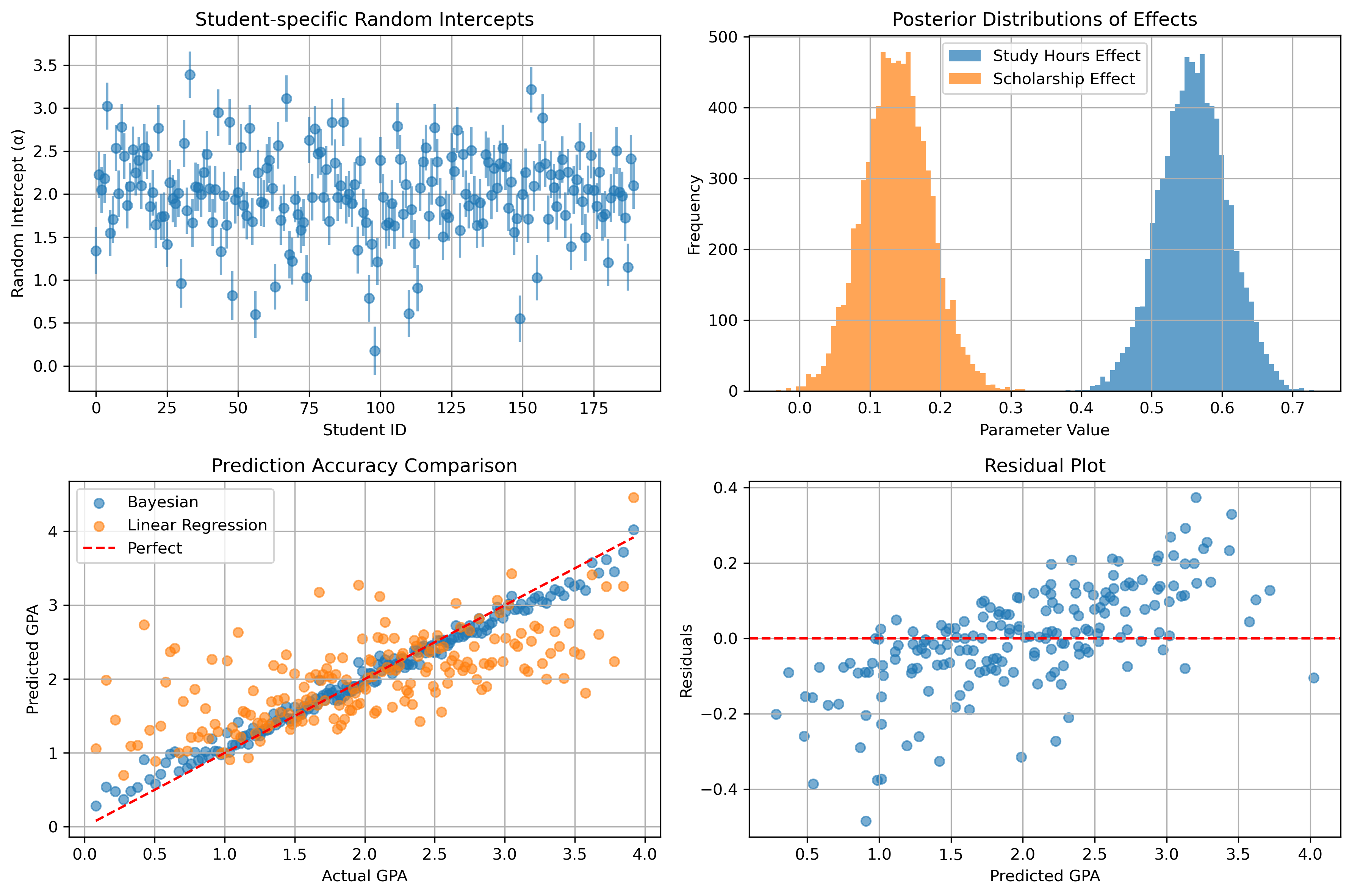

    # 階層効果の可視化
    plt.figure(figsize=(12, 8))

    # 学生別の切片分布
    alpha_means = np.mean(posterior_samples.alpha.values, axis=1)
    alpha_stds = np.std(posterior_samples.alpha.values, axis=1)

    plt.subplot(2, 2, 1)
    plt.errorbar(range(len(alpha_means)), alpha_means, yerr=alpha_stds, fmt='o', alpha=0.6)
    plt.xlabel("Student ID")
    plt.ylabel("Random Intercept (α)")
    plt.title("Student-specific Random Intercepts")
    plt.grid(True)

    # パラメータの事後分布
    plt.subplot(2, 2, 2)
    plt.hist(beta_st_vals, bins=50, alpha=0.7, label='Study Hours Effect')
    plt.hist(beta_ss_vals, bins=50, alpha=0.7, label='Scholarship Effect')
    plt.xlabel("Parameter Value")
    plt.ylabel("Frequency")
    plt.title("Posterior Distributions of Effects")
    plt.legend()
    plt.grid(True)

    # 予測精度の比較
    plt.subplot(2, 2, 3)
    plt.scatter(df["GPA"], posterior_mean, alpha=0.6, label='Bayesian')
    plt.scatter(df["GPA"], lm_preds, alpha=0.6, label='Linear Regression')
    plt.plot([df["GPA"].min(), df["GPA"].max()],
             [df["GPA"].min(), df["GPA"].max()], 'r--', label='Perfect')
    plt.xlabel("Actual GPA")
    plt.ylabel("Predicted GPA")
    plt.title("Prediction Accuracy Comparison")
    plt.legend()
    plt.grid(True)

    # 残差分析
    plt.subplot(2, 2, 4)
    residuals = df["GPA"] - posterior_mean
    plt.scatter(posterior_mean, residuals, alpha=0.6)
    plt.axhline(y=0, color='r', linestyle='--')
    plt.xlabel("Predicted GPA")
    plt.ylabel("Residuals")
    plt.title("Residual Plot")
    plt.grid(True)

    plt.tight_layout()
    plt.savefig(save_dir + "comprehensive_results.png", dpi=300, bbox_inches='tight')
    plt.close()

    # 結果の要約をCSVに保存
    results_summary = {
        'Metric': ['R²', 'MAE', 'RMSE', 'Study_Effect_Mean', 'Study_Effect_Std',
                  'Scholarship_Effect_Mean', 'Scholarship_Effect_Std', 'Student_Variability'],
        'Value': [r2, mae, bayes_rmse, np.mean(beta_st_vals), np.std(beta_st_vals),
                 np.mean(beta_ss_vals), np.std(beta_ss_vals), np.mean(sigma_alpha_vals)]
    }

    results_df = pd.DataFrame(results_summary)
    results_df.to_csv("model_results_summary.csv", index=False, encoding='utf-8-sig')

import pymc as pm
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import arviz as az
import graphviz
from pymc import model_to_graphviz
import statsmodels.api as sm
from sklearn.metrics import mean_squared_error, r2_score, mean_absolute_error
from scipy.stats import norm, rankdata


save_dir = '../../images/slds/ch12/'

if __name__ == "__main__":

    # ---------------------------
    # 1. データ読み込み
    # ---------------------------
    df = pd.read_csv('hierarchical_regression.csv'
                ,dtype={'GPA': float
                       ,'Scholarship': bool
                       ,'Study_Hours': float
                       ,'Sports_hours': float
                       ,'Part_time_Work': float
                       ,'StudentID':int})

    # 数量化
    df = pd.get_dummies(df, columns=['Scholarship'], dtype='int')

    #標準化
    from sklearn.preprocessing import StandardScaler
    scaler = StandardScaler()
    df[['Scholarship_True'
       ,'Study_Hours'
       ,'Part_time_Work'
       ,'Sports_hours']] = scaler.fit_transform(df[['Scholarship_True'
                                                   ,'Study_Hours'
                                                   ,'Part_time_Work'
                                                   ,'Sports_hours']])

    # ---------------------------
    # ２. 線形回帰
    # ---------------------------

    # 説明変数(X)と目的変数(y)に分割
    X = df[['Scholarship_True', 'Study_Hours']]
    y = df['GPA']


    # 切片(定数項)を追加
    X = sm.add_constant(X)
    lm = sm.OLS(y, X).fit()
    print("\n[通常の線形回帰の結果]\n")
    print(lm.summary())
    lm_preds = lm.predict(X)

    coords = {
        "student": df["StudentID"].values,
        "obs_id": np.arange(len(df))
    }

    with pm.Model(coords=coords) as model:
        st = pm.Data("st", df["Study_Hours"])
        #ptw = pm.Data("ptw", df["Part_time_Work"])
        ss = pm.Data("ss", df["Scholarship_True"])
        student_idx = pm.Data("student_idx", df["StudentID"])

        #ランダム切片
        z_alpha = pm.Normal("z_alpha", 0, 1, dims="student")
        mu_alpha = pm.Normal("mu_alpha", 0, 1)
        sigma_alpha = pm.HalfNormal("sigma_alpha", 1)
        alpha = pm.Deterministic("alpha", mu_alpha + sigma_alpha * z_alpha, dims="student")


        # 勉強時間の効果
        beta_st = pm.Normal("beta_st",0,1)

        # 奨学金の効果
        beta_ss = pm.Normal("beta_ss",0,1)

        mu = alpha[student_idx] + beta_st * st +  beta_ss * ss

        #sigma = pm.HalfNormal("sigma", 1)
        sigma = 0.3
        gpa_obs = pm.Normal("GPA",
                            mu=mu,
                            sigma=sigma,
                            observed=df["GPA"],
                            dims="obs_id"
                        )
        trace = pm.sample(draws =2000, tune=2000, chains=4, target_accept=0.95, return_inferencedata=True)
        posterior_predictive = pm.sample_posterior_predictive(trace)

        # MCMCサンプリングの実行
        trace = pm.sample(draws =2000, tune=2000, chains=4, target_accept=0.95, return_inferencedata=True)
        # 事後予測分布のサンプリング
        posterior_predictive = pm.sample_posterior_predictive(trace)

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 2 jobs)
NUTS: [z_alpha, mu_alpha, sigma_alpha, beta_st, beta_ss]
  Progress                                   Draws   Divergences   Step size   Grad evals   Sampling Speed   Elapsed   Remaining
 ────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
  ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━   4000    0             0.205       15           326.43 draws/s   0:00:12   0:00:00
  ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━   4000    0             0.222       31           340.23 draws/s   0:00:11   0:00:00
  ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━   4000    0             0.203       15           151.86 draws/s   0:00:26   0:00:00
  ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━   4000    0             0.182       15           158.16 draws/s   0:00:25   0:00:00

    graph = model_to_graphviz(model)
    graph.render(filename= save_dir + "hierarchical_bayes_model", format="pdf")

    az.plot_trace(trace
                 ,var_names=["sigma_alpha"
                            ,"alpha"
                            ,"beta_st"
                            ,"beta_ss"])
    plt.tight_layout()
    plt.savefig(save_dir + 'trace.png')
    plt.close()

    print(az.summary(trace
                    ,var_names=["sigma_alpha"
                               ,"alpha"
                               ,"beta_st"
                               ,"beta_ss"]))
    summary_df = az.summary(trace
                           ,var_names=["sigma_alpha"
                                      ,"alpha"
                                      ,"beta_st"
                                      ,"beta_ss"])
    summary_df.to_csv("bayesian_summary.csv"
                     ,encoding="utf-8-sig")

    idata = trace.copy()
    idata.extend(posterior_predictive)
    az.plot_ppc(idata, data_pairs={"GPA": "GPA"})
    plt.savefig(save_dir + 'ppc.png')
    plt.close()

    # 事後予測分布から予測値(平均)を取り出す
    posterior_mean = idata.posterior_predictive["GPA"].mean(dim=("chain", "draw")).values
    # RMSEを計算
    bayes_rmse = mean_squared_error(df["GPA"], posterior_mean)
    print(f"[階層ベイズモデルのRMSE] {bayes_rmse:.4f}\n")

    # プロット
    plt.figure(figsize=(8, 6))
    plt.scatter(df['GPA'], posterior_mean, alpha=0.7, edgecolors="k")
    plt.xlabel("Predicted (Bayesian)")
    plt.ylabel("Actual GPA")
    plt.title("Bayesian Actual vs. Predicted")
    plt.plot([df['GPA'].min(), df['GPA'].max()],
             [df['GPA'].min(), df['GPA'].max()],
             color="red", linestyle="--", label="Perfect prediction")
    plt.grid()
    plt.legend()
    plt.savefig(save_dir + 'bayes.png')
    plt.close()

    plt.figure(figsize=(16,8))
    sns.kdeplot(posterior_mean, label = 'Predicted')
    sns.kdeplot(df['GPA'], label = 'Actual')
    plt.title('Actual/Predicted')
    plt.xlabel('GPA')
    plt.ylabel('Density')
    plt.legend()
    plt.savefig(save_dir + 'bayes_kde.png')
    plt.close()

    # x軸用の study_hours の範囲（100点）
    study_grid = np.linspace(df["Study_Hours"].min(), df["Study_Hours"].max(), 100)

    # 奨学金なしの予測
    predict_df_0 = pd.DataFrame({
        "Study_Hours": study_grid,
        "Scholarship_True": 0,
        "StudentID": 0
    })

    # 奨学金ありの予測
    predict_df_1 = pd.DataFrame({
        "Study_Hours": study_grid,
        "Scholarship_True": 1,
        "StudentID": 0
    })

    # より簡単な方法：事後分布から直接予測
    # 事後分布のサンプルを取得（新しいAPIを使用）
    posterior_samples = az.extract(trace)

    # 予測計算
    n_samples = len(posterior_samples.draw)
    n_grid = len(study_grid)

    # 予測値を格納する配列（奨学金なし・あり）
    predictions_0 = np.zeros((n_samples, n_grid))
    predictions_1 = np.zeros((n_samples, n_grid))

    # パラメータを一度に取得
    mu_alpha_vals = posterior_samples.mu_alpha.values
    sigma_alpha_vals = posterior_samples.sigma_alpha.values
    z_alpha_vals = posterior_samples.z_alpha.values  # 全学生のz_alpha
    beta_st_vals = posterior_samples.beta_st.values
    beta_ss_vals = posterior_samples.beta_ss.values

    for i in range(n_samples):
        # 各サンプルでのパラメータ（学生0の切片を計算）
        alpha_0 = mu_alpha_vals[i] + sigma_alpha_vals[i] * z_alpha_vals[0, i]  # 学生0の切片

        # 奨学金なしの予測値の計算
        mu_pred_0 = alpha_0 + beta_st_vals[i] * study_grid + beta_ss_vals[i] * predict_df_0["Scholarship_True"]
        predictions_0[i, :] = np.random.normal(mu_pred_0, 0.3)

        # 奨学金ありの予測値の計算
        mu_pred_1 = alpha_0 + beta_st_vals[i] * study_grid + beta_ss_vals[i] * predict_df_1["Scholarship_True"]
        predictions_1[i, :] = np.random.normal(mu_pred_1, 0.3)

    # 平均と予測区間（94%）
    mean_pred_0 = np.mean(predictions_0, axis=0)
    lower_pred_0 = np.percentile(predictions_0, 3, axis=0)
    upper_pred_0 = np.percentile(predictions_0, 97, axis=0)

    mean_pred_1 = np.mean(predictions_1, axis=0)
    lower_pred_1 = np.percentile(predictions_1, 3, axis=0)
    upper_pred_1 = np.percentile(predictions_1, 97, axis=0)

    # 実データも合わせて表示（奨学金の有無で色分け）
    plt.figure(figsize=(12, 8))

    # 奨学金なしの予測線
    plt.plot(study_grid, mean_pred_0, color="blue", label="Bayesian prediction (Scholarship=0)")
    plt.fill_between(study_grid, lower_pred_0, upper_pred_0, color="blue", alpha=0.2, label="94% CI (Scholarship=0)")

    # 奨学金ありの予測線
    plt.plot(study_grid, mean_pred_1, color="green", label="Bayesian prediction (Scholarship=1)")
    plt.fill_between(study_grid, lower_pred_1, upper_pred_1, color="green", alpha=0.2, label="94% CI (Scholarship=1)")

    # 奨学金の有無で実測値を色分け
    scholarship_0 = df[df["Scholarship_True"] == 0]
    scholarship_1 = df[df["Scholarship_True"] == 1]

    plt.scatter(scholarship_0["Study_Hours"], scholarship_0["GPA"],
                color="red", alpha=0.6, label="Observed GPA (Scholarship=0)", s=30)
    plt.scatter(scholarship_1["Study_Hours"], scholarship_1["GPA"],
                color="orange", alpha=0.6, label="Observed GPA (Scholarship=1)", s=30)

    plt.xlabel("Study Hours")
    plt.ylabel("GPA")
    plt.title("Bayesian Regression Lines with 94% Prediction Intervals")
    plt.legend()
    plt.grid(True)
    plt.tight_layout()
    plt.savefig(save_dir + "bayes_prediction_band.png")
    plt.close()

    # パラメータの解釈可能性を向上
    print("\n=== モデル結果の解釈 ===")
    print(f"勉強時間の効果 (beta_st): {np.mean(beta_st_vals):.3f} ± {np.std(beta_st_vals):.3f}")
    print(f"奨学金の効果 (beta_ss): {np.mean(beta_ss_vals):.3f} ± {np.std(beta_ss_vals):.3f}")
    print(f"学生間のばらつき (sigma_alpha): {np.mean(sigma_alpha_vals):.3f} ± {np.std(sigma_alpha_vals):.3f}")
    #
    ## 効果量の計算
    effect_size_study = np.mean(beta_st_vals) / np.mean(sigma_alpha_vals)
    effect_size_scholarship = np.mean(beta_ss_vals) / np.mean(sigma_alpha_vals)
    print(f"勉強時間の標準化効果量: {effect_size_study:.3f}")
    print(f"奨学金の標準化効果量: {effect_size_scholarship:.3f}")
    #
    ## 予測精度の詳細評価
    r2 = r2_score(df["GPA"], posterior_mean)
    mae = mean_absolute_error(df["GPA"], posterior_mean)
    print(f"\n=== 予測精度 ===")
    print(f"R²: {r2:.4f}")
    print(f"MAE: {mae:.4f}")
    print(f"RMSE: {bayes_rmse:.4f}")

    # 階層効果の可視化
    plt.figure(figsize=(12, 8))

    # 学生別の切片分布
    alpha_means = np.mean(posterior_samples.alpha.values, axis=1)
    alpha_stds = np.std(posterior_samples.alpha.values, axis=1)

    plt.subplot(2, 2, 1)
    plt.errorbar(range(len(alpha_means)), alpha_means, yerr=alpha_stds, fmt='o', alpha=0.6)
    plt.xlabel("Student ID")
    plt.ylabel("Random Intercept (α)")
    plt.title("Student-specific Random Intercepts")
    plt.grid(True)

    # パラメータの事後分布
    plt.subplot(2, 2, 2)
    plt.hist(beta_st_vals, bins=50, alpha=0.7, label='Study Hours Effect')
    plt.hist(beta_ss_vals, bins=50, alpha=0.7, label='Scholarship Effect')
    plt.xlabel("Parameter Value")
    plt.ylabel("Frequency")
    plt.title("Posterior Distributions of Effects")
    plt.legend()
    plt.grid(True)

    # 予測精度の比較
    plt.subplot(2, 2, 3)
    plt.scatter(df["GPA"], posterior_mean, alpha=0.6, label='Bayesian')
    plt.scatter(df["GPA"], lm_preds, alpha=0.6, label='Linear Regression')
    plt.plot([df["GPA"].min(), df["GPA"].max()],
             [df["GPA"].min(), df["GPA"].max()], 'r--', label='Perfect')
    plt.xlabel("Actual GPA")
    plt.ylabel("Predicted GPA")
    plt.title("Prediction Accuracy Comparison")
    plt.legend()
    plt.grid(True)

    # 残差分析
    plt.subplot(2, 2, 4)
    residuals = df["GPA"] - posterior_mean
    plt.scatter(posterior_mean, residuals, alpha=0.6)
    plt.axhline(y=0, color='r', linestyle='--')
    plt.xlabel("Predicted GPA")
    plt.ylabel("Residuals")
    plt.title("Residual Plot")
    plt.grid(True)

    plt.tight_layout()
    plt.savefig(save_dir + "comprehensive_results.png", dpi=300, bbox_inches='tight')
    plt.close()

    # 結果の要約をCSVに保存
    results_summary = {
        'Metric': ['R²', 'MAE', 'RMSE', 'Study_Effect_Mean', 'Study_Effect_Std',
                  'Scholarship_Effect_Mean', 'Scholarship_Effect_Std', 'Student_Variability'],
        'Value': [r2, mae, bayes_rmse, np.mean(beta_st_vals), np.std(beta_st_vals),
                 np.mean(beta_ss_vals), np.std(beta_ss_vals), np.mean(sigma_alpha_vals)]
    }

    results_df = pd.DataFrame(results_summary)
    results_df.to_csv("model_results_summary.csv", index=False, encoding='utf-8-sig')
